Moving and Watering Examples

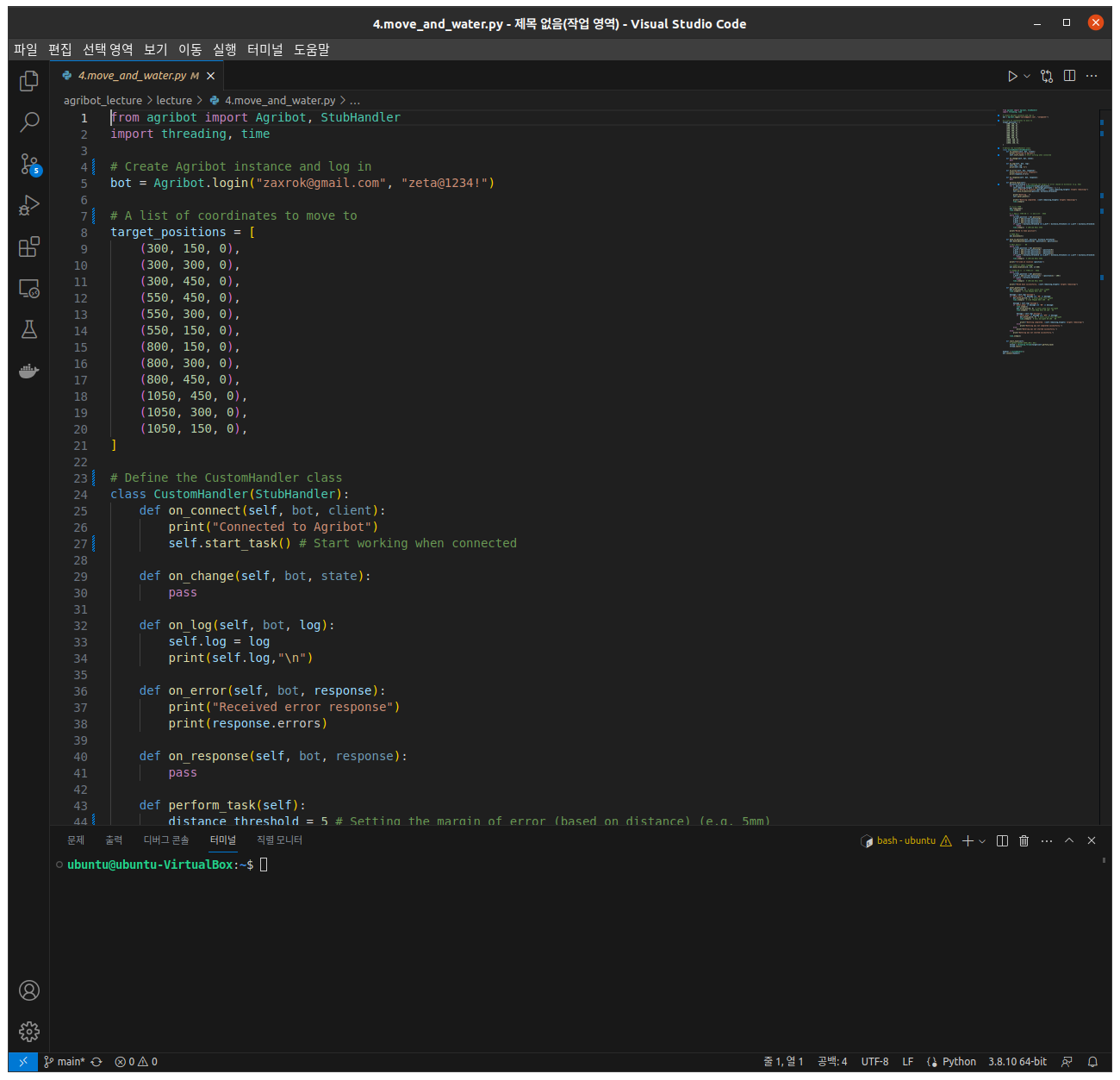

Import the necessary python libraries and modules.
from agribot import Agribot, StubHandler
import threading, time
Log in and create an Agribot instance.
bot = Agribot.login("zaxrok@gmail.com", "zeta@1234!")
Create a list of positions to go to.
target_positions = [
(300, 150, 0),
(300, 300, 0),
(300, 450, 0),
(550, 450, 0),
(550, 300, 0),
(550, 150, 0),
(800, 150, 0),
(800, 300, 0),
(800, 450, 0),
(1050, 450, 0),
(1050, 300, 0),
(1050, 150, 0),
]
Define a custom handler, CustomHandler, with methods:
on_connect: Prints a connection confirmation.
on_response: Stays idle on bot response.
on_change: Prints bot’s current position and disconnects the bot.
on_log: Prints the bot’s log status.
on_error: Prints the bot’s error status.
perform_task: Move the location according to the list, sprinkle water, and finally return to the initial position.
class CustomHandler(StubHandler):
def on_connect(self, bot, client):
print("Connected to Agribot")
self.start_task() # 연결 시 작업 시작
def on_change(self, bot, state):
pass
def on_log(self, bot, log):
self.log = log
print(self.log,"\n")
def on_error(self, bot, response):
print("Received error response")
print(response.errors)
def on_response(self, bot, response):
pass
def perform_task(self):
distance_threshold = 5 # 오차 범위(거리 기준) 설정 (예: 5mm)
for i, position in enumerate(target_positions):
self.remaining_targets = len(target_positions) - i - 1
print(f"Moving to location {position}... ({self.remaining_targets} targets remaining)")
self.move_to_position(position, distance_threshold)
print("Watering...")
self.water_plants()
print(f"Watering completed. ({self.remaining_targets} targets remaining)")
time.sleep(2)
# 홈으로 이동
bot.find_home()
time.sleep(2)
# 홈 위치로 이동 후 제대로 도착했는지 확인
while True:
current_position = bot.position()
x_diff = abs(current_position[0])
y_diff = abs(current_position[1])
z_diff = abs(current_position[2])
if x_diff < distance_threshold and y_diff < distance_threshold and z_diff < distance_threshold:
break
time.sleep(1) # 1초마다 위치 확인
print("Moved to home position")
# 연결 종료
bot.disconnect()
def move_to_position(self, position, distance_threshold):
bot.move_absolute(position[0], position[1], position[2])
# 위치 도달까지 대기
while True:
current_position = bot.position()
x_diff = abs(current_position[0] - position[0])
y_diff = abs(current_position[1] - position[1])
z_diff = abs(current_position[2] - position[2])
if x_diff < distance_threshold and y_diff < distance_threshold and z_diff < distance_threshold:
break
time.sleep(1) # 1초마다 위치 확인
print(f"Arrived at location {position}")
# Z 방향으로 200씩 내려가기
bot.move_relative(x=0, y=0, z=-200)
# 내려간 후 제대로 이동했는지 확인
while True:
current_position = bot.position()
z_diff = abs(current_position[2] - (position[2] - 200))
if z_diff < distance_threshold:
break
time.sleep(1) # 1초마다 위치 확인
print(f"Moved down successfully. ({self.remaining_targets} targets remaining)")
def water_plants(self):
bot.write_pin(8, 1) # water_valve 장치 활성화
time.sleep(2) # 펌프 동작을 위해 2초 대기
message = self.log['message']
if 'water_valve' in message and 'ON' in message:
bot.write_pin(10, 1) # water_pump 장치 활성화
time.sleep(2) # 펌프 동작을 위해 2초 대기
message = self.log['message']
if 'water_pump' in message and 'ON' in message:
time.sleep(2)
bot.write_pin(10, 0) # water_pump 장치 비활성화
time.sleep(2) # 펌프 동작 종료 후 2초 대기
message = self.log['message']
if 'water_pump' in message and 'OFF' in message:
bot.write_pin(8, 0) # water_valve 장치 비활성화
time.sleep(2) # 밸브 비활성화 후 2초 대기
print(f"Watering completed. ({self.remaining_targets} targets remaining)")
else:
print("Watering was not completed successfully.")
else:
print("Watering was not started successfully.")
else:
print("Watering was not started successfully.")
time.sleep(2)
def start_task(self):
# 작업을 별도의 스레드에서 실행
thread = threading.Thread(target=self.perform_task)
thread.start()
Connect the Agribot instance with the CustomHandler instance, resulting in the execution of the defined methods on respective triggers.
handler = CustomHandler()
bot.connect(handler)
