Basic Tool Hardware

Step 1: Install the magnets

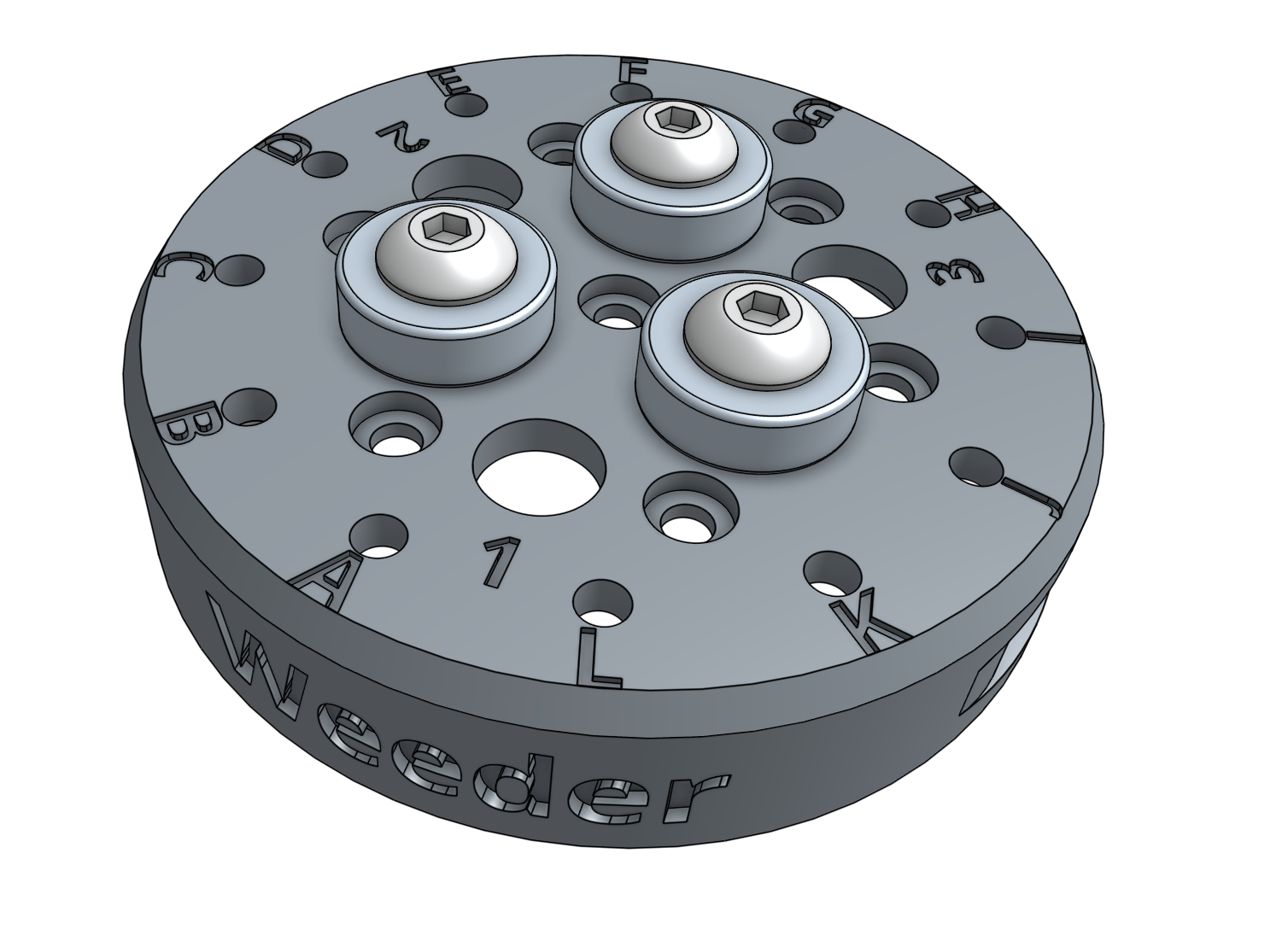

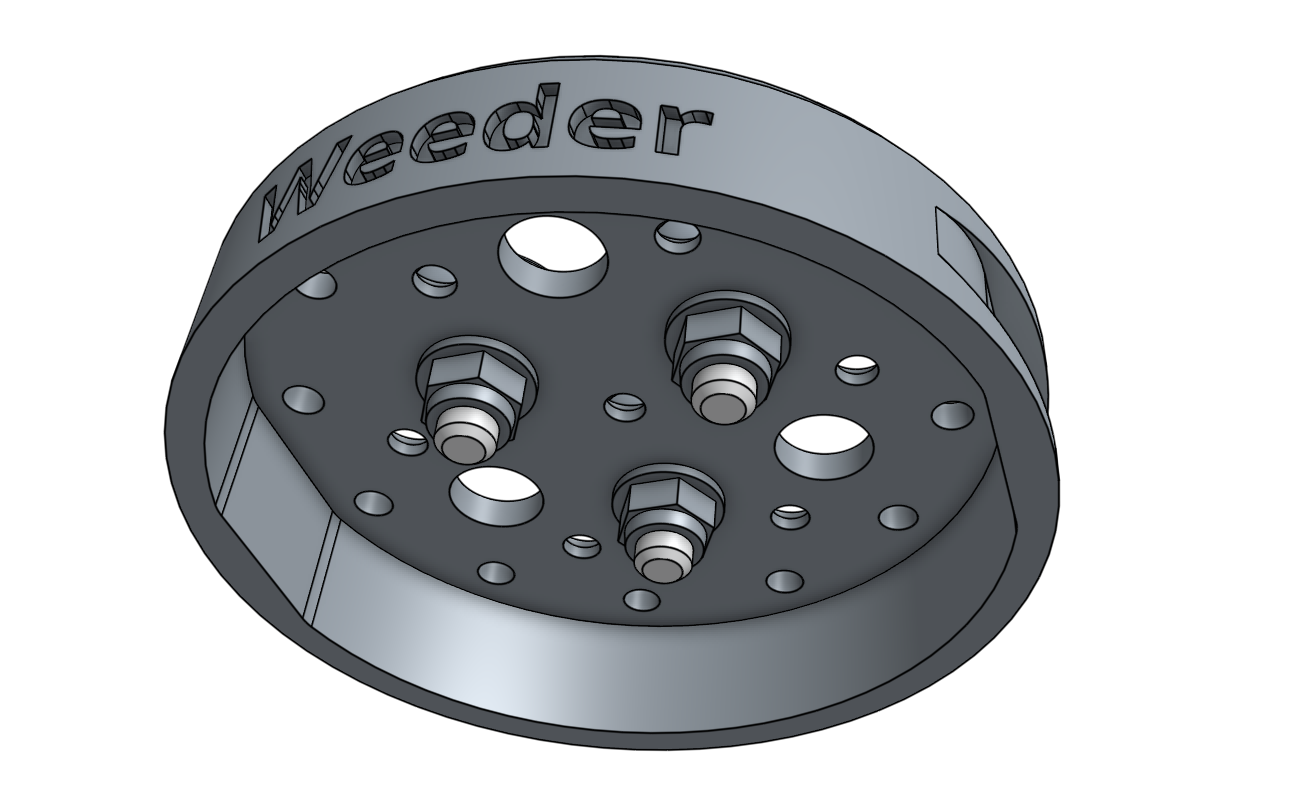

• Secure the three ring magnets to the top of the tool using three M5 x 16mm screws and M5 flange locknuts.

• Use the 3mm hex driver and 8mm wrench to tighten the components. Note: the watering nozzle will require M5 x 30mm screws.

Step 2: Install the tool verification jumper link

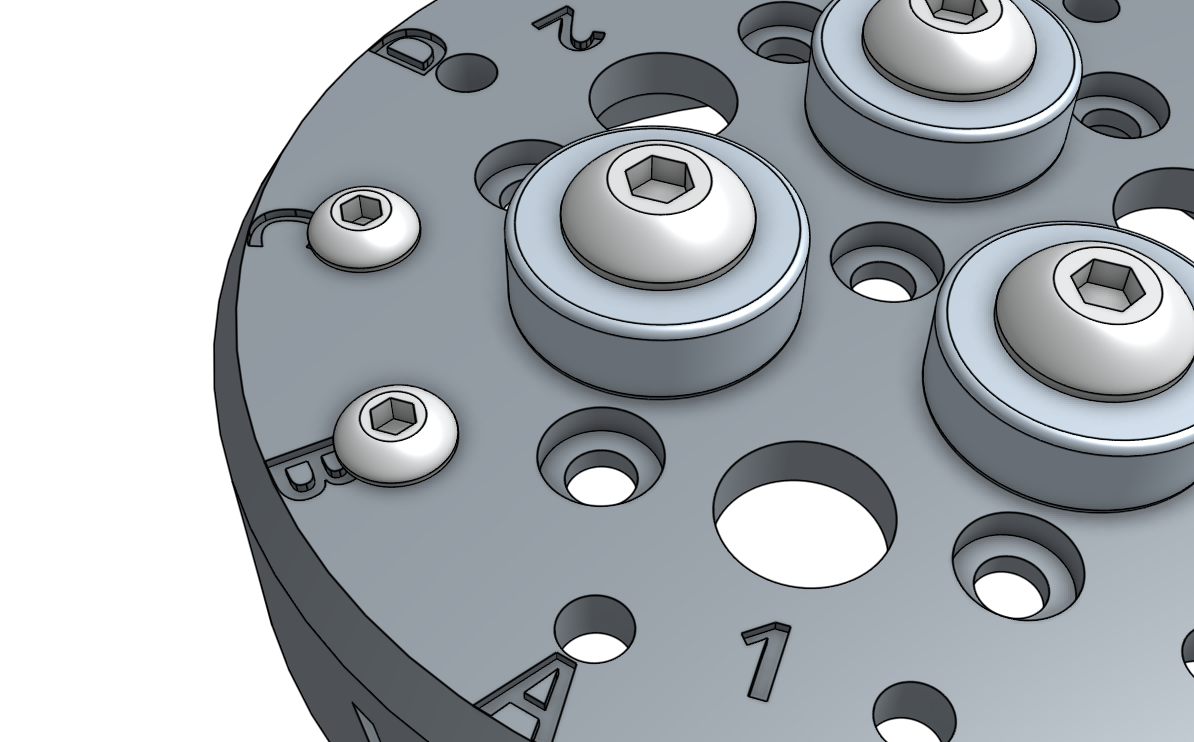

• Insert two M3 x 12mm screws into the holes labelled B and C on the top of the tool.

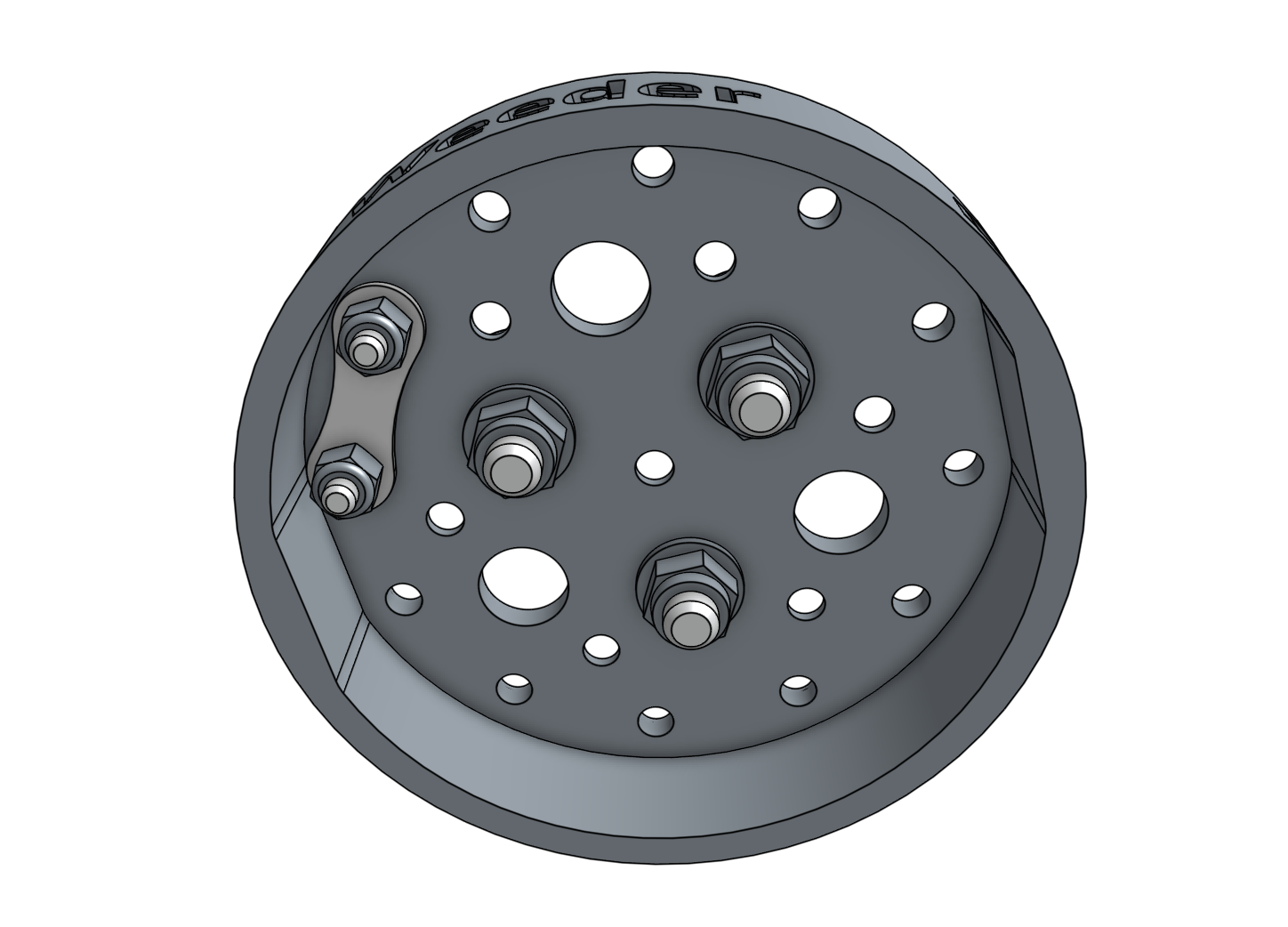

• Secure the jumper link to the bottom of the screws with two M3 locknuts.
